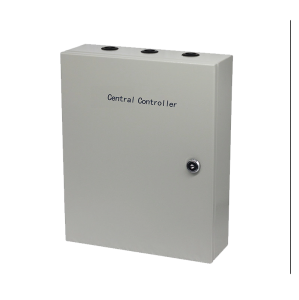

central controller

Features :
The central controller is the core of the entire system. It counts and processes the parking space full and empty status data of the entire parking lot, and pushes the processing results to the guidance display screen in real time to realize the vehicle guidance function. High-performance 32-bit ARM platform, embedded real-time operating system, and full industrial-grade design ensure the stability and reliability of the product. The entire system controller can be remotely upgraded to meet user needs at all times.

1. The central controller communicates with the host computer using Ethernet.
2. Adopting CAN bus industrial-grade communication connector design, signal communication is stable and reliable, and the transmission distance can reach 3 kilometers.
3. The equipment has short circuit, reverse connection and wrong connection protection design to prevent electrical damage to related equipment caused by short circuit, reverse connection and other situations due to incorrect wiring during construction.
4. A maximum of 256 managed partitions (supporting 256 related methods).
5. After the relevant information is downloaded, it will be automatically saved and run correctly independently without the computer.
6. Basic parameters:
a. Communication mode: 1 CAN @ 20kbps.
b. Communication distance: CAN: ≤1200m (RVSP 0.75X2) 1-way 10/100BaseT Ethernet.
c. Ethernet: 100m (Category 5e cable) 4-way RS485 @ 9600bps.
d. RS485: plug socket.
e. Communication interface: CAN: plug socket.
f. Communication object: CAN: area controller or node controller.
g. Ethernet: RJ45.
h. Ethernet: Network switch/PC.
i. Capacity of lower-level equipment: 63.
j. Self-protection function: overload, overcurrent and leakage protection.
k. Power consumption: ≤2W.
1. Working temperature: -40℃～+80℃.
m. Storage temperature: -40℃～+80℃.
n. Ambient humidity: ≤90%RH (non-condensing).
o. Working voltage: AC220V.
p. Appearance dimensions: height 379 × width 278 × thickness 119mm (±5%).
