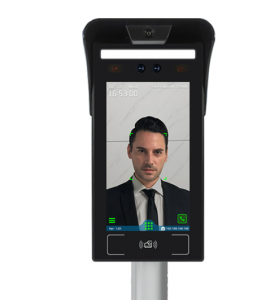

Detect Face Recognition Access Control Attendance/RD-TF43C2

Features :
☆Supports face positioning and recognition in strong light environments.
☆Face recognition time is less than 0.5s.
☆LINUX operating system.
☆IP42 grade waterproof and dustproof.
☆Supports up to 10,000 facial recognitions.
☆Automatic gain and automatic white balance make the photos appear real and natural.
☆Supports intelligent face exposure.

1. Hardware:
a. Processor: dual-core processor 1G.
b. Operating system: Embedded Linux.
c. Storage support: TF card.
d. Viewing angle: vertical angle: 30°; horizontal angle: 30°.
e. CMOS: 1/2.8" CMOS.
f. Lens: 6mm.
2. Temperature measurement:
a. Measuring environment: 16℃-40℃.
b. Measurement accuracy: ±0.3℃.
c. Temperature resolution: 0.1℃.
d. Temperature measurement distance: ≤30cm.
e. Response time: 300ms.
3. Interface:
a. Switch output: 1.
b. Network: RJ45X1 10M/100M.
c. Wiegand: Wiegand input X1, Wiegand output X1.
d. USB: Interface USBX1.
e. Communication: RS485X1.
4. Lens:
a. Camera: Dual lens.
b. Effective pixels: 2 million effective pixels 1920X1080.
c. Minimum illumination: Color 0.01Lux @F1.2.
d. Wide dynamic: 120db, ISP algorithm.
e. Encoding: H.265.
5. Parameters:
a. Working humidity: 0-90% relative humidity, no condensation.
b. Antistatic: Contact ±6KV, Air ±8KV.
c. Protection level: IP42.
d. Power supply: DC12V/2A.
e. Equipment power: 20W (MAX).
f. Equipment size: 273HX136WX33Tmm.
g. Screen specification: 8-inch IPS HD screen.
6. Column hole: 36mm.
7. Equipment weight: 1.7 kg.
