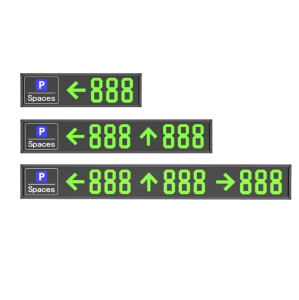

LED Indoor LED Display

Features :
Indoor LED display screen consists of high-brightness LED modules, drive units, brackets and other parts. Installed at important intersections inside the parking lot. Receive the output information of the centralized controller and display the number of available parking spaces in the area in the form of numbers, arrows, etc., to guide car owners to quickly find empty
parking spaces , ensure the smooth flow of the parking lot and the intelligent and full utilization of parking spaces.

1. The indoor LED display screen adopts glass panel + profile shell, with a simple and elegant appearance.
2. The outer shell adopts dust-proof design and is not easy to change color.
3. The indoor LED display adopts low power consumption design and has short circuit, overvoltage, overcurrent and overload protection.
4. Supports multi-directional display content to meet the needs of various crossroads;
5. The green indicator is clear and legible, the lamp beads have high luminous intensity, long viewing distance and wide viewing angle.
6. Basic parameters:
a. Working voltage: AC 110V or 220V, 60Hz.
b. Power consumption: <10W (single layer).
c. Storage temperature: -40℃～+85℃.
d. Working temperature: -20℃～+65℃.
e. Ambient humidity: ≤90%RH (non-condensing).
f. Material: high-grade material + glass panel.
g. Communication mode: RS485 @ 9600bps.
h. Communication socket: plug socket.
i. Connection method: Connect to sub-controller or detector.
j. Communication distance: ≤300m.
k. Equipment features: customizable.
1. Light source: high brightness LED, viewing angle 120°.
m. One-way: width 483X height 380X thickness 100mm (±5%).
n. Bidirectional: width 863X height 380X thickness 100mm (±5%).
0. Three-way: width 1245X height 380X thickness 100mm (±5%)
