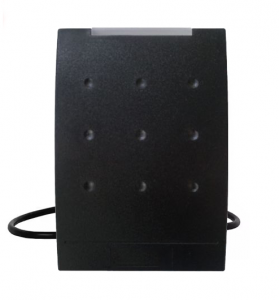

Long distance card reader series / RDM-15AF

Features :
1. Adjustable trigger distance: The trigger distance setting can be adjusted through software to solve the requirements of card reading distance in actual floor control and access control applications.
2. High-security anti-interference technology: Using the newly created multi-frequency technology communication, the card information is strictly encrypted using the company's unique encryption technology, and is digitally processed using multiple verification methods before being sent to the reader.
3. Anti-collision: capable of reading 100 cards at the same time.
4. Low frequency trigger: The card has a 125KHz low frequency trigger function, which effectively controls and limits the card reading range.
5. Multiple data output modes: with Wiegand26, Wiegand34, data type output.

Medium-distance card reader parameters
1. Working voltage: DC12V/3A.
2. Baud rate: 9600.
3. Working frequency: 2.4GHz~2.483gh&125k.
4. Ambient temperature: -20℃～+85℃.
5.Relative humidity: ≤90%.
6. Card reading distance: 2.5m.
7. Receiving sensitivity: -90dBm.
8. Anti-collision capability: 100pcs.
9. Appearance dimensions: height 120 x width 84 x thickness 22mm (±5%).
