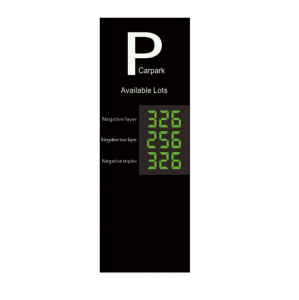

outdoor parking light box

Features :
The outdoor parking light box consists of a high-brightness LED module, a drive circuit, a bracket, etc. It is installed at each entrance of the parking lot to display the remaining parking space information in the parking lot. It receives parking space statistics information from the centralized controller, and displays the number of empty parking spaces in the current parking lot in real time in the form of numbers and text, prompting drivers of vehicles preparing to enter the lot, and can be used 24 hours a day.

1. Waterproof and dustproof design, the large screen is treated with anti-ultraviolet paint and is not easy to change color (the appearance is simple and elegant, and can be customized according to customer needs).
2. Use glass panel and cold steel paint for the shell.
3. Low power consumption design, with short circuit, overload, over current and over voltage protection.
4. The luminous intensity reaches 1600mcd, the viewing distance is greater than 50m, and the viewing angle is wide.
5. Basic parameters:
a. Working voltage: AC 110V or 220V, 50/60Hz.
b. Power consumption: ≤10W (single layer).
c. Storage temperature: -40℃～+80℃
d. Working temperature: -20℃～+65℃.
e. Ambient humidity: ≤90%RH (non-condensing).
f. Equipment features: Customizable.
g. Communication object: connected to sub-controller or detector.
i. Distance: ≤300m Display digital height: 20CM.
j. Number of digits supported: 3-4.
k. Light source: high brightness LED, viewing angle 120°.
1. Communication mode: 1-way RS485 @ 9600baud.
m. This is a custom-made product.
