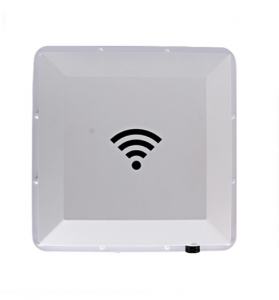

UHF RFID Reader/ RDM-101M
Product name: UHF RFID Reader/ RDM-101M
Car Finding System LTR-9909 Is A High Performance UHF UHF Electronic Label All-In-One
Specification
|

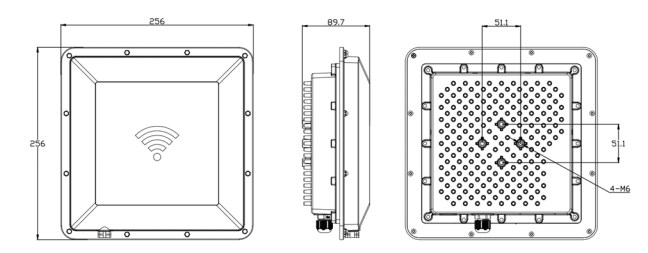

outline dimension
|
256mm×256mm×89.7mm
|
Air protocol
|
EPC Class 1 Gen2 (ISO 18000-6C)
|
|
weight
|
About 1.0kg (excluding accessories)
|
Antenna gain
|
9dbi
|
|
pigment
|
White (face shell color) + silver gray (back shell)
|
RF output power
|
33dBm
|
|
Case material
|
Engineering plastic ABS + metal die-cast aluminum
|
Output power regulation
|
Step 1 dB
|
|
levels of protection
|
IP67
|
Work pattern
|
Fixed frequency / frequency hopping is optional; single machine / intensive
|
|
Stick diameter
|
φ 30～φ50mm
|
Wave flap Angle
|
Hor:65±2°/ Ver:65±2°
|
Product description
RDM-101M is a high-performance UHF electronic label all-in-one device. It boasts a design with completely independent intellectual
property rights and incorporates a proprietary efficient signal processing algorithm. This enables it to achieve rapid reading and
writing processing of electronic labels while maintaining a high reading rate. Supporting the EPC Class 1 Gen2 (ISO 18000-6C) air
interface protocol, its working frequency spans 860 ~ 868 MHz / 902 ~ 928 MHz, which can be adjusted as per different
countries' or regions' requirements. With features like long identification distance, high speed, and great accuracy, along with
excellent protection performance and ease of installation and use, it's widely applicable in logistics, vehicle management, access
control, anti-counterfeiting, and production process control RFID systems.
functional characteristics
-
High-performance multi-label recognition algorithm, unique l-Search multi-label recognition algorithm, provide ultra-high recognition efficiency. Maximize multi-label read speed and spiritual density.
-
Two label inventory modes. After the cache mode reads the label, put the cache and filter the duplicate data. There is no redundancy. The real-time mode reads the tag and uploads it immediately, and the user can get the tag data in the first time.
-
RF amplifier status detection. Monitor the operating state of the RF power amplifier to ensure that the power amplifier is not saturated. Ensure the long-term and stable work.
-
Antenna connection status monitoring.
-
Simple and efficient instruction system. The instruction system based on serial port is simple, efficient, convenient and fast integrated.
-
Outstanding heat dissipation design. All heating devices have thermal conduction structure, large area of heat sink contact surface. The thermal coupling interface adopts fixed material with high thermal conductivity and does not volatile at high temperature.Support label data filtering, has a flexible data filtering mode, and can accurately screen the target label in the actual application process .
-
It supports intensive card reading and adopts the optimal design scheme to maximize the frequency interference and communication conflicts between module channels.
-
Support the RSSI function, the label signal strength can be judged at any time in the actual application process, and optimize the label application in time.
-
A 9 dBi customized circular pole antenna is embedded, combined with the integrated structure design of the reader, so that the integrated performance of the antenna is fully optimized, and the typical stable reading distance can exceed 15 meters.
-
Support 1 external antenna interface expansion, realize fixed one machine and two use, achieve fixed / separate antenna dual combination (optional).
-
Rich communication interface, support Ethernet / RS-232 / RS-485 / Wei and other communication modes.
-
The I / O interface supports 2 optical coupling input and 2 relay output.
-
Using a mature and reliable, multiple verification of the dense circuit design, can be all-weather uninterrupted operation.
-
Provides demonstration UHF DEMO software for secondary development
Product display
|
Leading in the RF performance The industry-leading E 710 high-performance RF chip and a built-in 9 dBi round polarization antenna perfectly integrates induction effects with read and write operations |
Easy to deploy applications The reader RF processing is highly integrated, which perfectly integrates the antenna and RFID read and write, minus the intermediate cumbersome process, and also provides a variety of communication interfaces |
Easy to develop integration Strong scalable, and support for multiple development languages as well as convenient development of SDK development package, easy system project integration |
|
Labbel adapt to a wide range Comply with EPC Class 1 Gen2 (ISO 18000-6C) protocol; support multiple working bands
|
Strong environmental adaptability The appearance is simple and generous, rich in texture, sealed without dead Angle packaging, support IP67 protection grade, waterproof, dustproof, shockproof, even if exposed to harsh environment is still performance and stable work |
Operation is stable and reliable Using a mature and reliable, multiple verification of the dense circuit design. The consistency is stable, and the software intelligently monitors the operation state, which can run 24 hours X 365 days |
