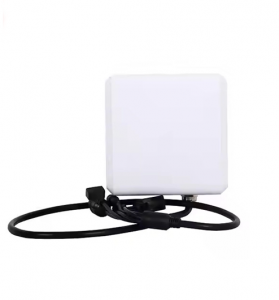

Car Finding System RDW-10M Long Reading Distance Uhf Integrated Reader RS485 Wiegand Parking Equipment Parking Management System UHF RFID Reader

Specification

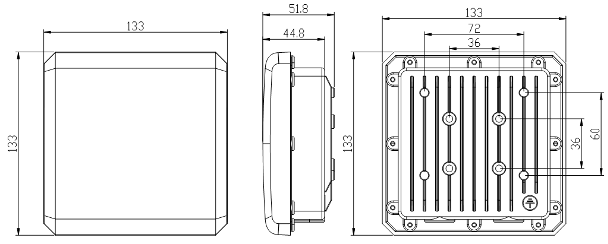

outline dimension	133mm×133mm×51.8mm	Air protocol	EPC global UHF Class 1 Gen2 (ISO 18000-6C)
weight	0.8Kg	RF output power	33dBm
pigment	Milk white (face shell color) + silver gray (back shell)	antenna gain	6dbi
Case material	Engineering plastics + cast aluminum	standing-wave ratio	≤1.3
levels of protection	IP65	Continuous read label distance	Up to 10 m (related to tag chip performance and usage environment)
Stick diameter	φ 40～φ50mm	Continuous write label distance	3 m (related to label chip performance and usage environment)

Product description

RDW-10M is a high-performance UHF RFID read and write device with integrated antenna and reader, Fully independent intellectual property rights design, Support for the ISO18000-6C protocol, Working frequency band covers GB 920MHz ~ 925 MHz (standard), FCC 902MHz ~ 928 MHz (optional), ETSI 865MHz ~ 868 MHz (optional) output power 33dB ± 1dB adjustable,With a beautiful appearance, it is Long identification distance, fast speed, high accuracy, high protection and convenient installation and use characteristics, It can be widely used in logistics management, access control system, anti-counterfeiting system and intelligent production process control and other wireless radio frequency identification (RFID) systems.

functional characteristics

1)High-performance multi-label recognition algorithm, unique l-Serch multi-label recognition algorithm, provide ultra-high recognition efficiency. Maximize multi-label read speed and spiritual density.

2)Two label inventory modes. After the cache mode reads the label, then put the cache and filter the duplicate data. There is no redundancy. The real-time mode reads the tag and uploads it immediately, and the user can get the tag data in the first time.

3)RF amplifier status detection. Monitor the operating state of the RF power amplifier to ensure that the power amplifier is not saturated. Ensure the long-term and stable work.

4)Antenna connection status monitoring.

5)Simple and efficient instruction system. The instruction system based on serial port is simple, efficient, convenient and fast integrated.

6)Outstanding heat dissipation design. All heating devices have thermal conduction structure, large area of heat sink contact surface. The thermal coupling interface adopts a fixed material with high thermal conductivity and is not volatile at high temperature.

7)Support label data filtering, has a flexible data filtering mode, and can accurately screen the target label in the actual application process.

8)It supports intensive card reading and adopts the optimal design scheme to maximize the frequency interference and communication conflicts between module channels.

9)Support the RSSI function, the label signal strength can be judged at any time in the actual application process, and optimize the label application in time.

10)A 6 dBi customized circular pole antenna is embedded, combined with the integrated structure design of the reader, the integrated performance of the antenna is fully optimized, and the typical read distance can reach 10 meters.

Product display
