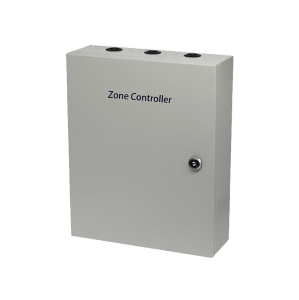

Zone Controller

Features :
The zone controller is used to cyclically read the status data of the connected detectors, upload the relevant information code to the central controller, and receive the available parking space information data from the central controller and send it to the guidance display screen for display.
　　　　　
1. Adopting imported 32-bit ARM processor and full industrial-grade design to ensure the stability and reliability of the product. The entire system controller can be upgraded remotely to meet user needs at all times.
2. Adopting CAN bus industrial-grade communication interface design, signal communication is stable and reliable, and the transmission distance can reach 1.2 kilometers.
3. The power supply adopts industrial-grade design and has short circuit, overload and overvoltage protection.
4. It adopts dual-channel RS485 communication bus design. The two channels are completely independent and do not affect each other. Each bus can connect up to 32 RS485 devices, with high communication efficiency.
5. It can quickly and effectively detect various states of the equipment. After installation, it can detect the communication status of RS485 equipment with one click and quickly diagnose the bus connection status.
6. Basic parameters:
a. Communication mode: 1 CAN @ 20kbps.
b. Communication interface: CAN: plug socket.
c. 4-way RS485 @ 9600bps RS485: plug socket.
d. Connection mode: CAN: centralized or distributed controller.
e. RS485: parking space detector/guidance screen.
f. Communication distance: CAN: ≤5000m (RVSP0.75↑×2).
g. RS485: ≤400m.
h. Single-channel node capacity: 32 devices (detectors or display screens).
i. Working power supply: AC220V
k. Storage temperature: -40℃～+80℃.
1. Power consumption: ≤2W (power consumption of the device itself, excluding the detector).
m. Working temperature: -40℃～+80℃.
n. Ambient humidity: ≤90%RH (non-condensing).
o. Appearance dimensions: height 379 × width 278 × thickness 119mm (±5%).
